Sanitary Spiral NF Membrane Element
Technical Specifications
|
model |
NFA-8040/34SU |
NFB-8040/34SU |
|
Membrane area (ft2/m2) |
365(34)±3% |
|
|
Flux (LMH) |
5-20 |
|
|
Temperature tolerance (°C) |
≤45 |
|
|
Operating pressure (bar) |
≤50 |
|
|
Normal Operating pH |
2-10 |
|
|
Clean pH |
1-13 |
|

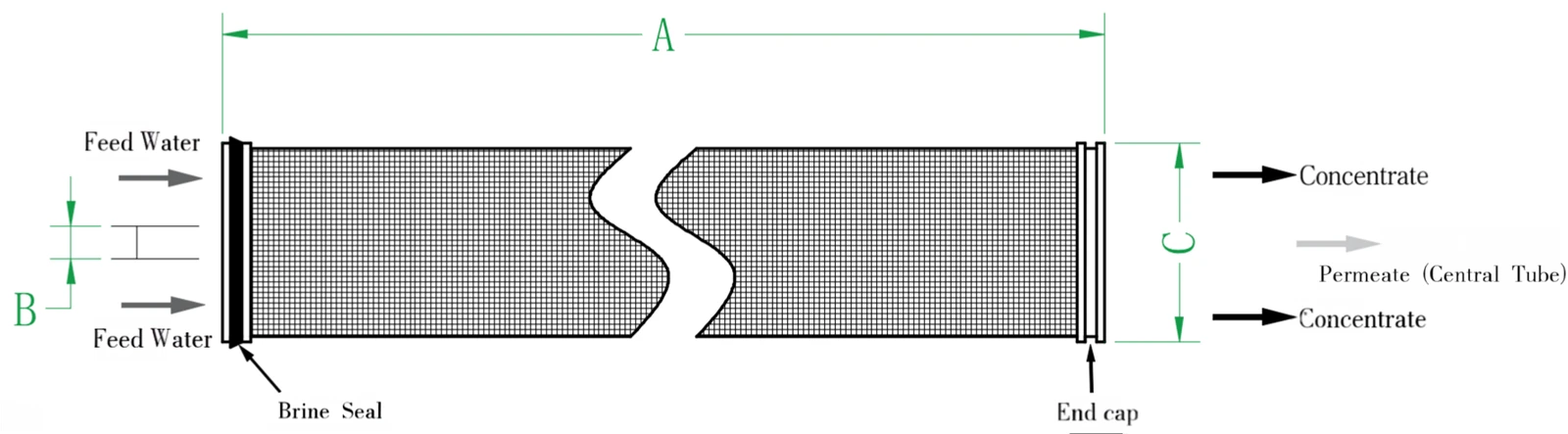

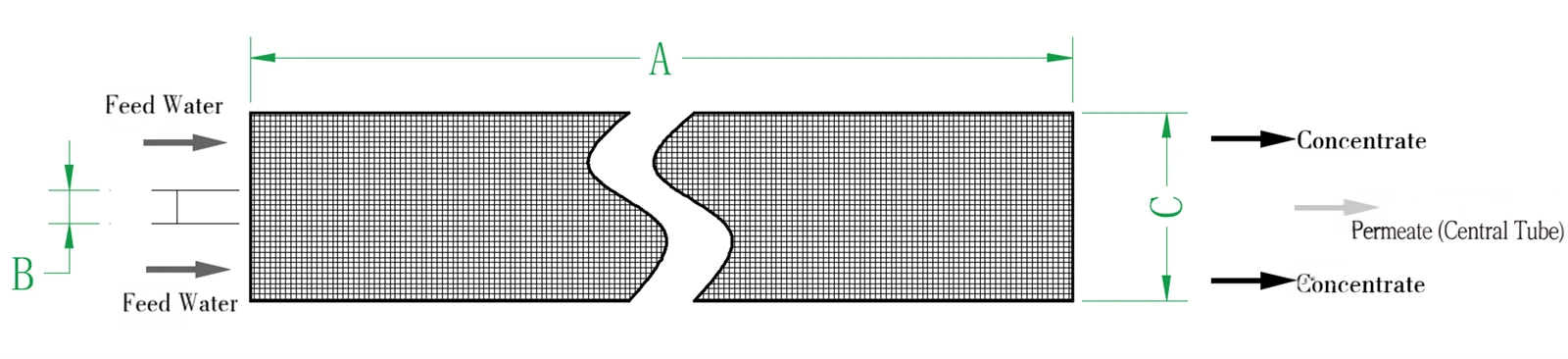

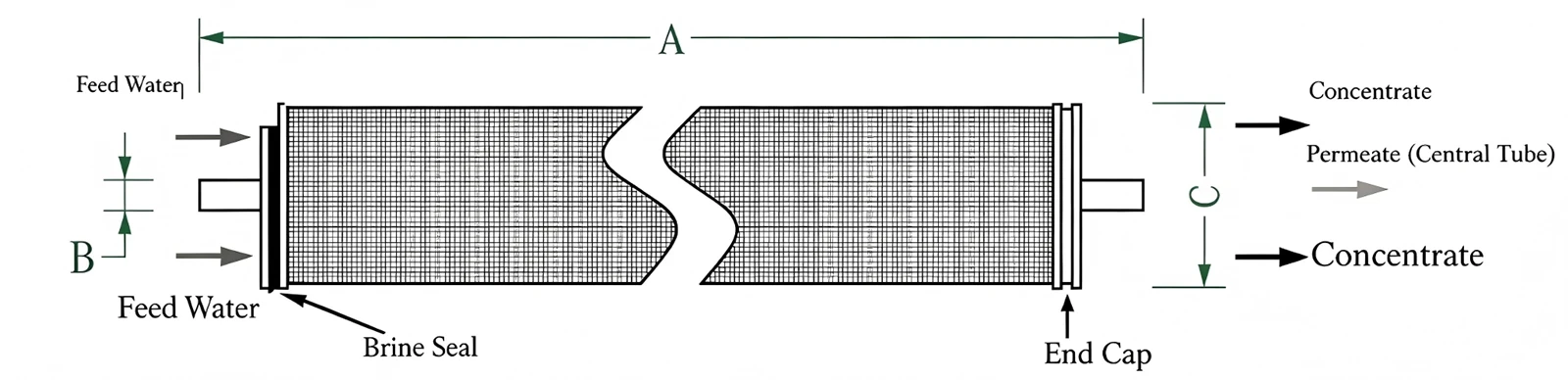

Product Size Parameter
|
Membrane element size |
A (±2.0mm) |
B (±0.5mm) |
C (±0.1mm) |
|
1812 |
305 |
15.7 |
45 |
|
3838 |
965 |
21.0 |
97 |
|
4038 |
965 |
12.8 |
100 |
|
4040 |
1016 |
19.0 |
100 |
|
8038 |
965 |
28.8 |
200 |
|
8040 |
1016 |
28.8 |
200 |

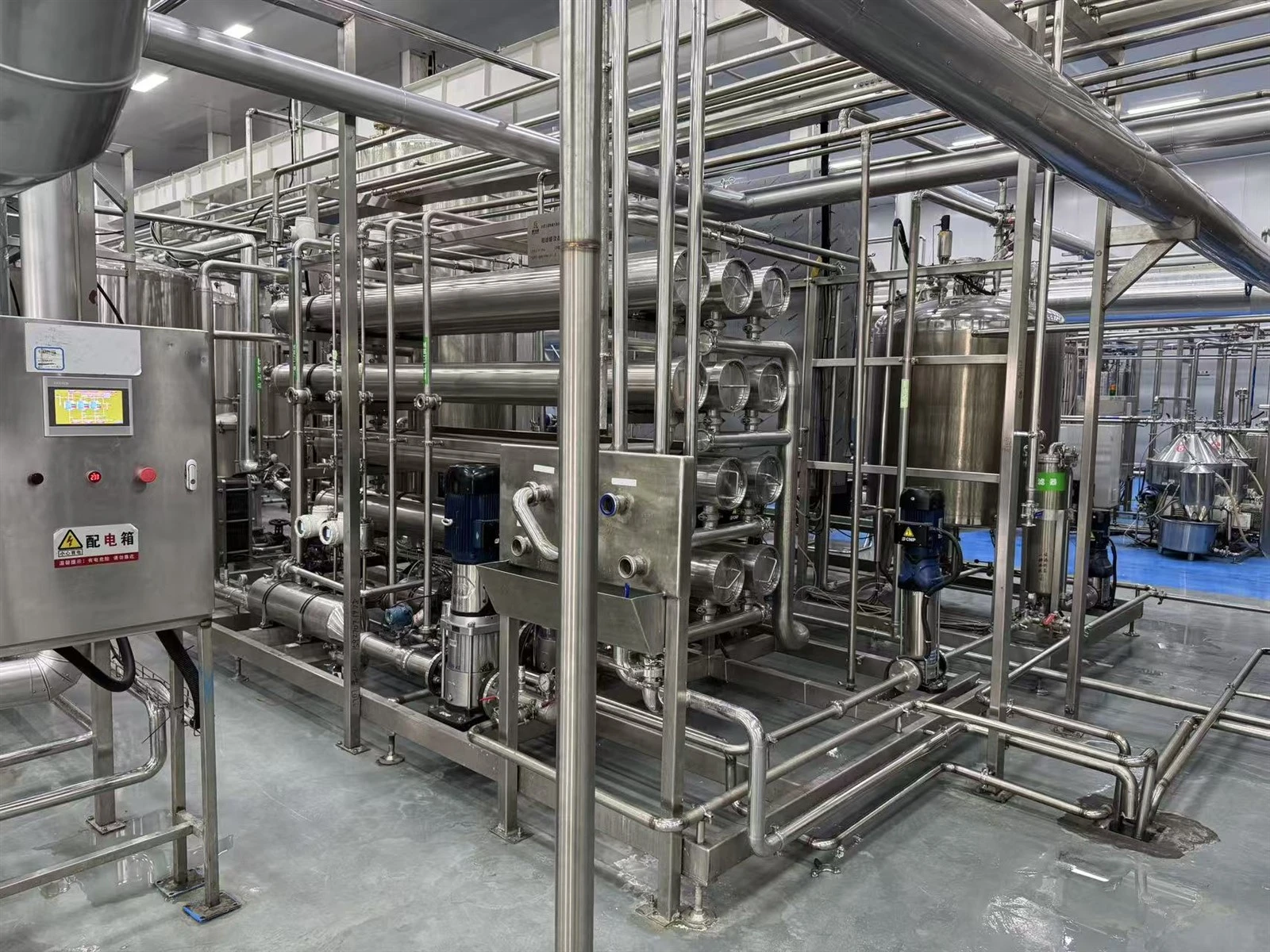

Application Scenarios
Biomacromolecule Separation & Concentration
- Purification and concentration of peptides, enzyme preparations and functional proteins
- Clarification and concentration of fruit and vegetable raw juice
- Amino acid processing and fermentation broth treatment
- Endotoxin removal, depoteinization and low-temperature sterilization for biological products
- Clarification of fermentation liquid containing vitamins and organic acids
- Fractionation and concentration of saccharide materials such as xylitol and monosaccharide
Related Knowledge
Types of Membrane Fouling
Adsorption Fouling
Organics adsorb onto the membrane surface. Contaminants build up within membrane pores, shrinking pore size and raising membrane resistance. This fouling is difficult to remove. Main contaminants are dissolved substances and emulsions.
Scaling Fouling
Salts in raw water exceed solubility and precipitate as scale on membranes. Contaminants include colloids and particles: organics like fats, proteins and humic acid; inorganics such as calcium, magnesium, iron and phosphorus salts.
Biofouling
Microbes accumulate at the membrane-water interface in two phases: adhesion and growth. If biocide dosage is insufficient, attached microbes feed on nutrients and multiply to form biofilms, mainly bacteria and algae.
Warranty Period
The company warrants the performance of membrane elements for three 3 years. The three-year warranty period shall commence on the earliest of the following dates:
The date when the reverse osmosis system is put into operation;
Six 6 months from the date the membrane elements are shipped from the manufacturing site;
Three 3 months after the membrane elements are shipped from Guangzhou / Shanghai, China to Taiwan of China, Japan, South Korea, Thailand, India, Malaysia, the United States and other designated locations in China.
