Sanitary Nanofiltration Spiral Element
Brand Name: NANOIMP
OEM/ODM: Accept
Manufacturer: Yes
Delivery Time: 3-15 days
Shipping Support: Express / Sea/ Land
Place of Origin: Hangzhou, China
E-mail: lena.hu@nano-sepmer.com
Main Models: NFA-8040/34SU | NFB-8040/34SU
Performance Data of Spiral NF Membrane
|
model |
NFA-8040/34SU |
NFB-8040/34SU |
| Cut-off molecular weight |
200-300 Da |
500-800 Da |
| Membrane Active Area (ft²/m²) | 387(34)±3% | |
| Cleaning pH Window |
1-13 |
|
| Max Permissible Feed‑Water SDI |
≤5 |
|
| Bespoke dimensional options |
1812/3838/4038/4040/8038/8040 |
|

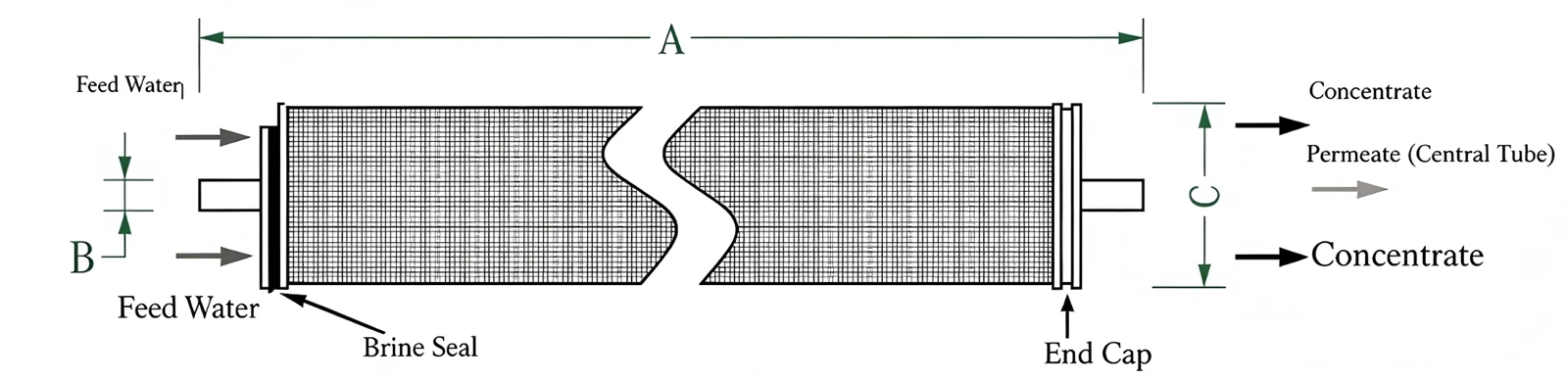

Product size parameter
|
Membrane element size |
A (±2.0mm) |
B (±0.5mm) |
C (±0.1mm) |
|
1812 |
305 |
15.7 |
45 |
|
4040 |
1016 |
19.0 |
100 |
|
8040 |
1016 |
28.8 |
200 |
Application Scenarios
Food & Bio-fermentation Liquid Refining
- Separation, concentration of polypeptide, enzyme and protein raw liquid
- Clarification and concentration of berry, vegetable juice
- Treatment of amino acid feedstock and fermented broth
- Endotoxin elimination, deproteinization and room temp concentration for biological raw materials
- Purification of fermented liquid rich in vitamins and organic acid
- Refining of polyol, monosaccharide and polysaccharide solutions
About Us
Types of Membrane Fouling
Adsorption Fouling
Organics adsorb onto the membrane surface. Contaminants build up within membrane pores, shrinking pore size and raising membrane resistance. This fouling is difficult to remove. Main contaminants are dissolved substances and emulsions.
Scaling Fouling
Salts in raw water exceed solubility and precipitate as scale on membranes. Contaminants include colloids and particles: organics like fats, proteins and humic acid; inorganics such as calcium, magnesium, iron and phosphorus salts.
Biofouling
Microbes accumulate at the membrane-water interface in two phases: adhesion and growth. If biocide dosage is insufficient, attached microbes feed on nutrients and multiply to form biofilms, mainly bacteria and algae.
Warranty Period
The company warrants the performance of membrane elements for three 3 years. The three-year warranty period shall commence on the earliest of the following dates:
The date when the reverse osmosis system is put into operation;
Six 6 months from the date the membrane elements are shipped from the manufacturing site;
Three 3 months after the membrane elements are shipped from Guangzhou / Shanghai, China to Taiwan of China, Japan, South Korea, Thailand, India, Malaysia, the United States and other designated locations in China.
