Hot Disinfection Reverse Osmosis Membrane Products
Product Description
- Membrane material: aromatic polyamide (APA)
- Outer wrapping type: sanitary mesh cage
- Flow channel type: Parallel flow channel 31mil
- Application scenarios: high temperature pure water preparation, heat disinfection pure water preparation, high temperature medium water reuse, high temperature material separation and concentration, etc.
Product Features
- Use imported high temperature resistant diaphragm, high temperature resistant accessories;
- By using multi-page/short-page welding, the effective membrane area is increased; dead corners are eliminated and water flux is improved;
- The special adhesive seal is used to reduce the salt permeability at the sealing of the membrane element under high temperature environment and improve the overall salt water retention performance;
- The serial number of the laser engraving film is engraved on the end cap for easy permanent identification.
Product Performance Parameters
|
Model |
HSRO-8040T95/31SU |
HSRO-4040T95/31SU |
|
Membrane area (ft2/m2) |
390(36)±3% |
91(8.4)±3% |
|
Test throughput (GPD/m3h) |
9000(34)±20% |
1900(7.2)±20% |
|
Test desalination rate (%) |
99.5% |
|
|
Maximum operating temperature (℃) |
≤45 (operating pressure ≤1.0 MPa) |
|
|
Hot disinfection temperature (℃) |
≤90 |
|
|
Temperature rise rate (°C/min) |
≤5 |
|
|
High operating pressure (psi/Mpa) |
≤600(4.1) |
|
|
Single diaphragm pressure differential (psi/bar) |
6-10/0.4-0.7 |
|
|
Normal operation pH |
2-11 |
|
|
Clean pH |
1-12 |
|
|
Cleaning pressure |
75-100(5.2-6.9) |
|
|
Extreme cleaning conditions |
≤60℃ (150psi/10bar) |
|
|
Test conditions |
2000 ppm NaCl, 25℃, pH=8, 15% recovery rate, 150psi (1.03MPa) |
|

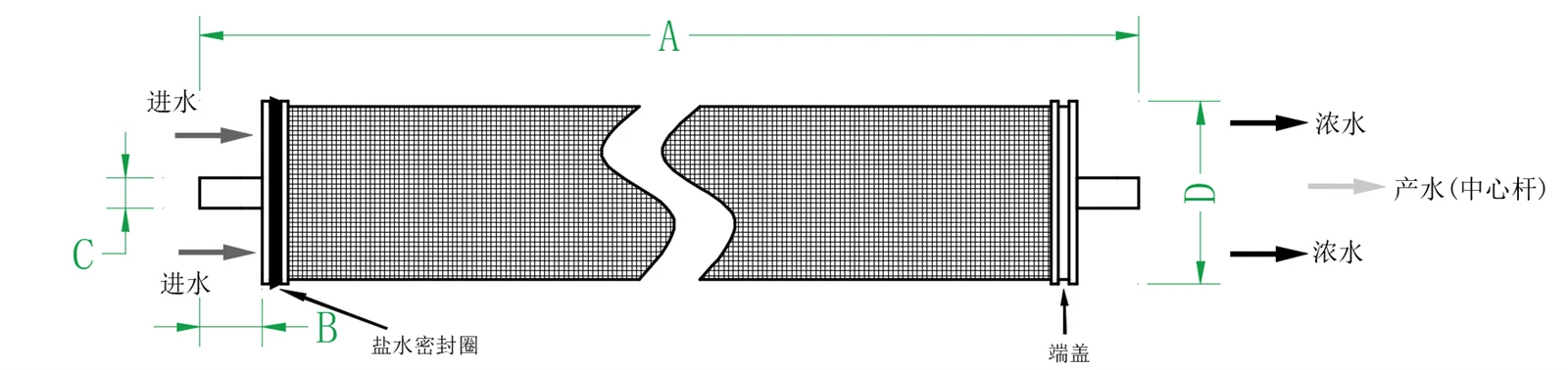

Product size parameters
(1) Flat End
|
Membrane element size |
A (±2.0mm) |
B (±0.1mm) |
C (±0.5mm) |
|
8040 |
1016 |
28.8 |
200 |
(2) Protruding End
|
Membrane element size |
A (±2.0mm) |
B (±0.1mm) |
C (±0.5mm) |
D (±0.1mm) |
|
4040 |
1016 |
26.7 |
19.1 |
100 |
