Electrophoretic Paint Ultrafiltration Membrane Element
video
Electrophoretic Paint Ultrafiltration Membrane Element

Electrophoretic Paint Ultrafiltration Membrane Element

1. Structure: Spiral wound UF membrane for electrocoating, corrosion resistant, suitable for chemical cleaning.
2. Membrane sheet: 100000 Da MWCO UF sheet, accurate interception of electrocoat particles, fouling resistant.
3. Performance: Large membrane area, high pure water flux, high paint recovery, stable electrocoating bath.
4. Size: Multiple specifications available (EUF-8240/EUF-8040/EUF-4040).
Send Inquiry

Product Introduction

E Coat UF Membrane

1-21

Brand Name: NANOIMP

OEM/ODM: Accept

Manufacturer: Yes

Delivery Time: 3-15 days

Shipping Support: Express / Sea/ Land

Place of Origin: Hangzhou, China

E-mail: lena.hu@nano-sepmer.com

Main Models: EUF-8240 | EUF-8040 | EUF-4040

Product Performance Parameters



Membrane type

Effective area (ft2/m2)

Pure water flux (GPD/m³·d)

MWCO (Da)

EUF-8240

387(36)

6500(26)

10 0000

EUF-8040

365(34)

6000(24)

10 0000

EUF-4040

91(8.4)

1800(7.2)

10 0000



Product size parameters



(1) Flat End

.png

Membrane Element Size

A (±2.0mm)

B (±0.1mm)

C (±0.5mm)

8240

1016

28.8

209

8040

1016

28.8

200



(2) Protruding End

 .png

Membrane Element Size

A (±2.0mm)

B (±0.1mm)

C (±0.5mm)

D (±0.1mm)

4040

1016

26.7

19.1

100



Application Scenarios

  • Automotive & parts coating: Electrocoating line for car bodies, chassis and auto parts to recover electrocoat and stabilize bath condition.
  • Home appliance coating: Electrocoat primer production for refrigerator, washing machine and air conditioner housings.
  • Construction machinery & agricultural equipment: Electrocoating for agricultural machinery, transformers and heavy equipment components.
  • Hardware & metal products: Electrocoating processing for hinges, slide rails, metal furniture and fasteners.
  • New energy metal components: Electrocoating production line for power battery housings and energy storage metal substrates.

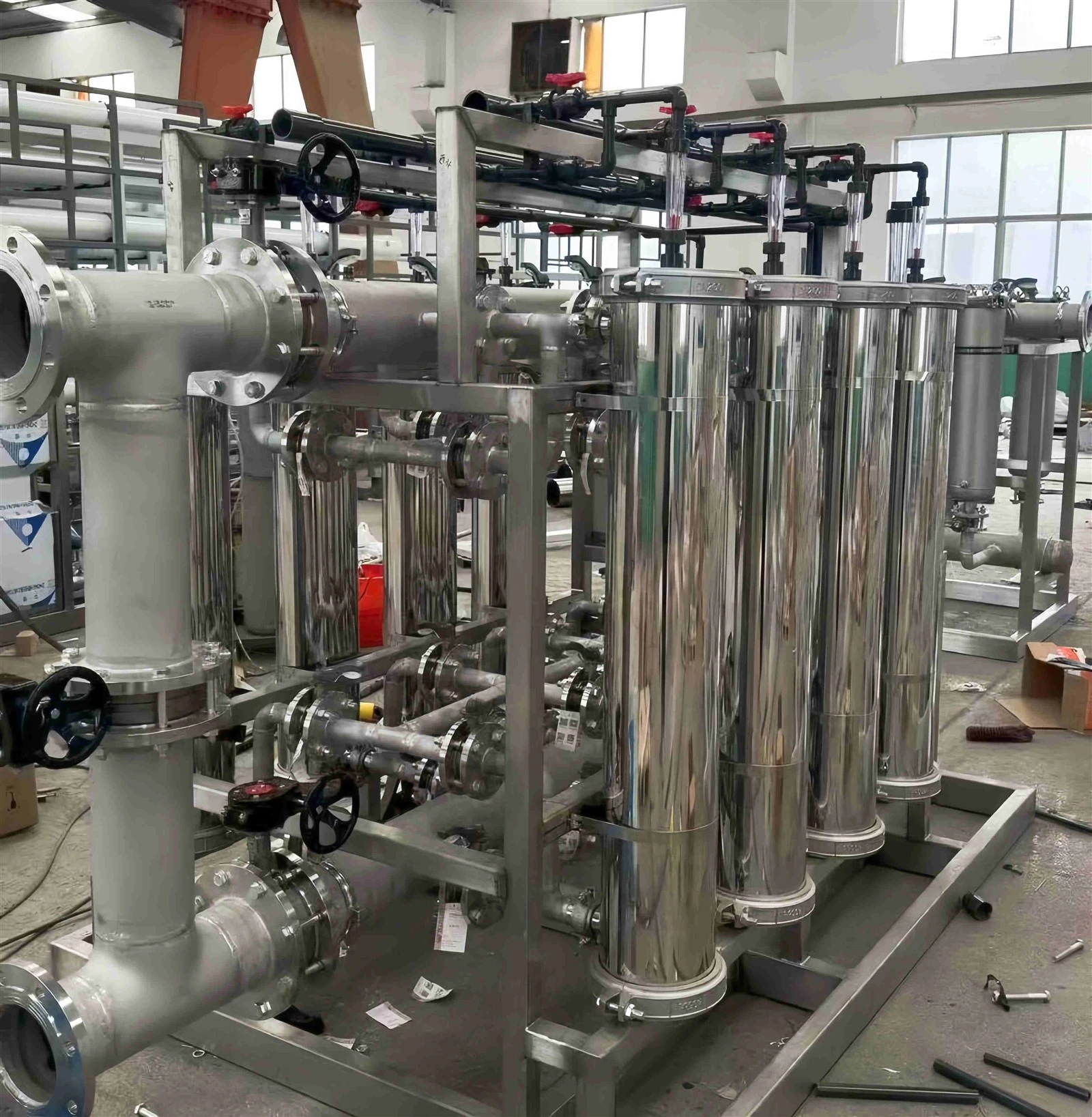

1

Related Knowledge

Membrane Module Storage


System storage instructions:

  • Uninstalled membrane modules must be stored at 5~40°C. Do not remove the outer packaging. Maximum storage period is 6 months, counted from the date of manufacture.
  • Once the membrane is wetted, it shall remain wet at all times. Do not allow the membrane to dry out after commissioning.
  • If the system shuts down for 24 hours, the liquid inside the membrane modules must be thoroughly flushed out.
  • If the system remains out of service for 5 days, perform low-pressure flushing with clean water once per day.
  • If the system shutdown exceeds 5 days, complete a cleaning procedure to drain the liquid from the modules. Then fill the modules with preservative solution containing 1% sodium bisulfite. (Prepare the preservative solution in the cleaning tank and circulate it through the modules by pump.) Check the pH value of the preservative solution weekly. Replace the solution when pH drops below. The preservative solution shall be renewed every month.



Warranty Period

The company warrants the performance of membrane elements for three 3 years. The three-year warranty period shall commence on the earliest of the following dates:

  • The date when the reverse osmosis system is put into operation;
  • Six 6 months from the date the membrane elements are shipped from the manufacturing site;
  • Three 3 months after the membrane elements are shipped from Guangzhou / Shanghai, China to Taiwan of China, Japan, South Korea, Thailand, India, Malaysia, the United States and other designated locations in China.
